E26d Not Go Gauge for Lampholders 7006-26A-2
- Measurement & Analysis Instruments > Safety Instrument
- Place of Origin: Include ISO 17025 CNAS & ILAC Test Report
- Item No.: 7006-26A-2
- Rated Output: Made in China
- Product Description: E26d Not Go Gauge for Lampholders 7006-26A-2 According to standard IEC 60061-3.
Product introduction

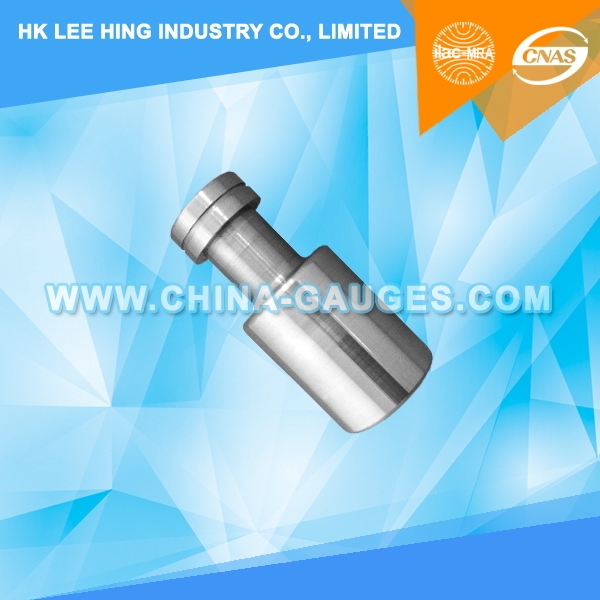

E26d Not Go Gauge for Lampholders 7006-26A-2

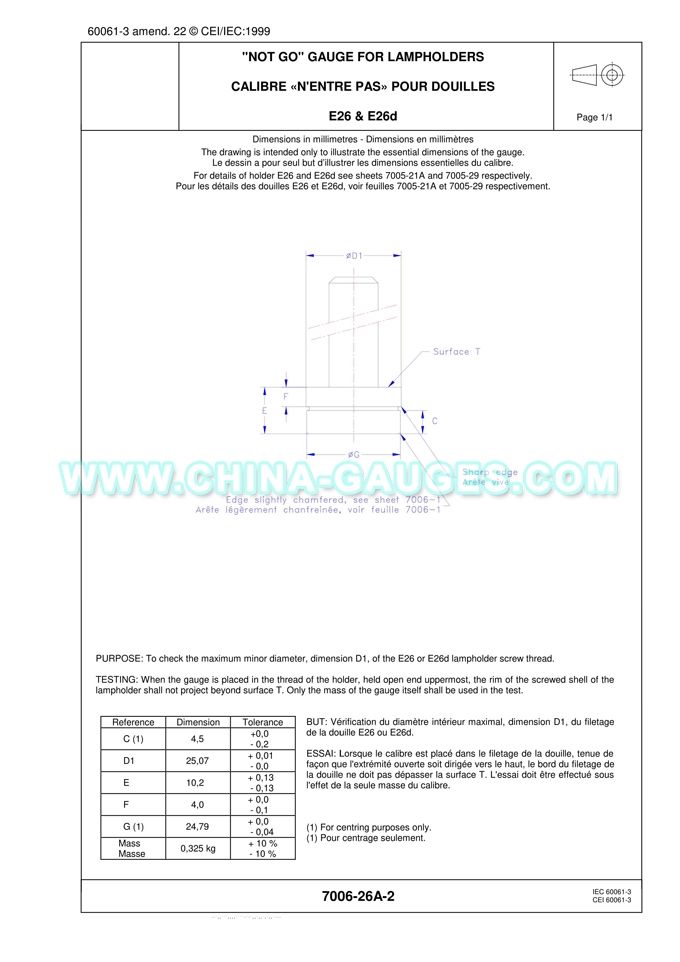

PURPOSE: To check the maximum minor diameter, dimension D1, of the E26 or E26d lampholder screw thread.
TESTING: When the gauge is placed in the thread of the holder, held open end uppermost, the rim of the screwed shell of the lampholder shall not project beyond surface T. Only the mass of the gauge itself shall be used in the test.
(1) For centring purposes only.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
