IEC60061-3: 7006-29-3 Japanese Standard Gauge for Testing Contact-Making of Lamps Fitted With Caps E26/25
- Measurement & Analysis Instruments > Safety Instrument
- Place of Origin: Include ISO 17025 CNAS & ILAC Test Report
- Item No.: 7006-29-3
- Rated Output: Made in China
- Product Description: Gauge for testing contact-making of lamps fitted with caps E26/25, 7006-29-3
Product introduction

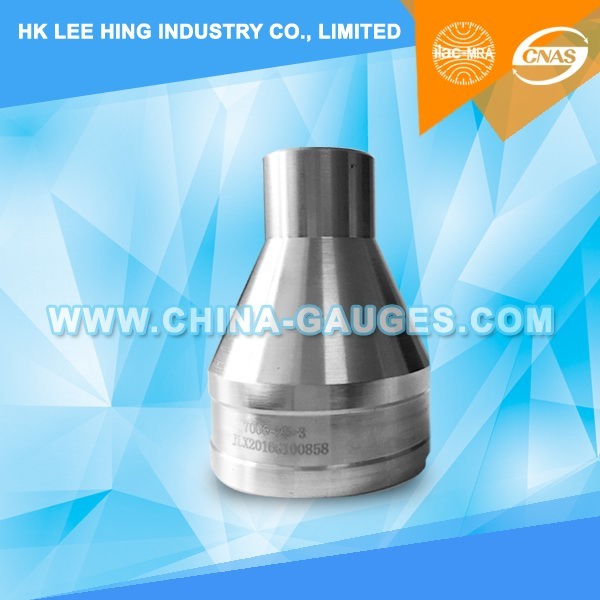

Gauge for testing contact-making of lamps fitted with caps E26/25 7006-29-3
Purpose:
To check lamp dimensions for contact-making in E26, E26/50x39, E26/51x39 or E26d lampholders.
Testing:
The shape of the lamp with regard to the fit in the lampholder is assumed to be correct, if the lamp can be pushed into the gauge until plane W reaches plane V or projects beyond it.
For E26/24 capped lamps, when surfaces V and W are coincident, the top of the cap including any solder or conductive material, shall not extend above surface X.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
